Arma Automotive Supercar Chassis Development
Arma Automotive started as a garage build project in 2012 and has evolved into a small business operating out of an industrial shop in Victoria West producing kit car manufacturing equipment & kit car chassis.
Tube chassis design in SolidWorks along with the Finite Element Analysis of two simulated crash tests to NHTSA standards (side impact & rollover). Methodology development for locating, notching, and slotting tubes together to improve the assembly & welding processes. The first kit car prototype has been ICBC insured, runs and drives, and has provided the groundwork for the next optimized prototype which is nearing completion.

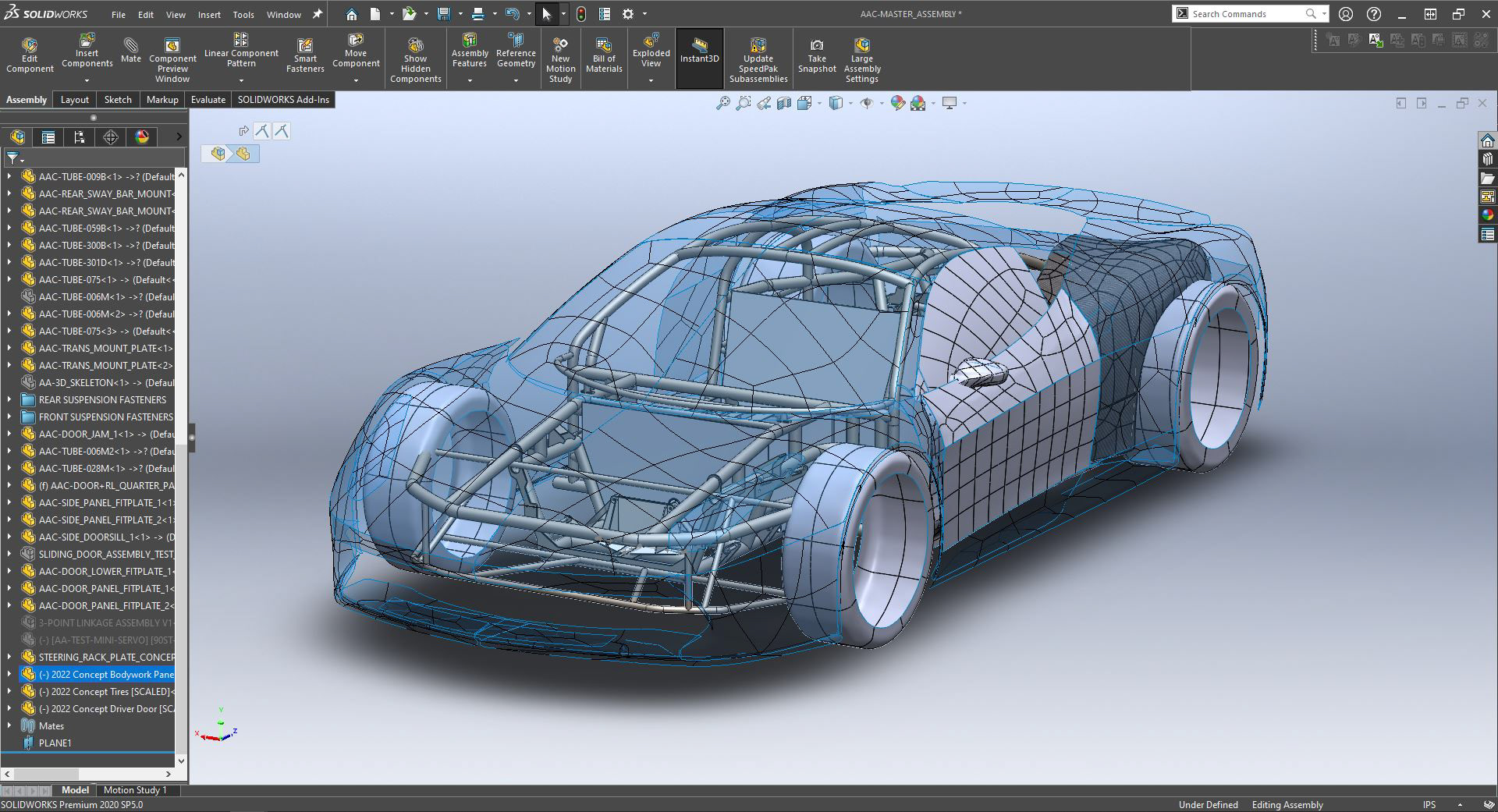

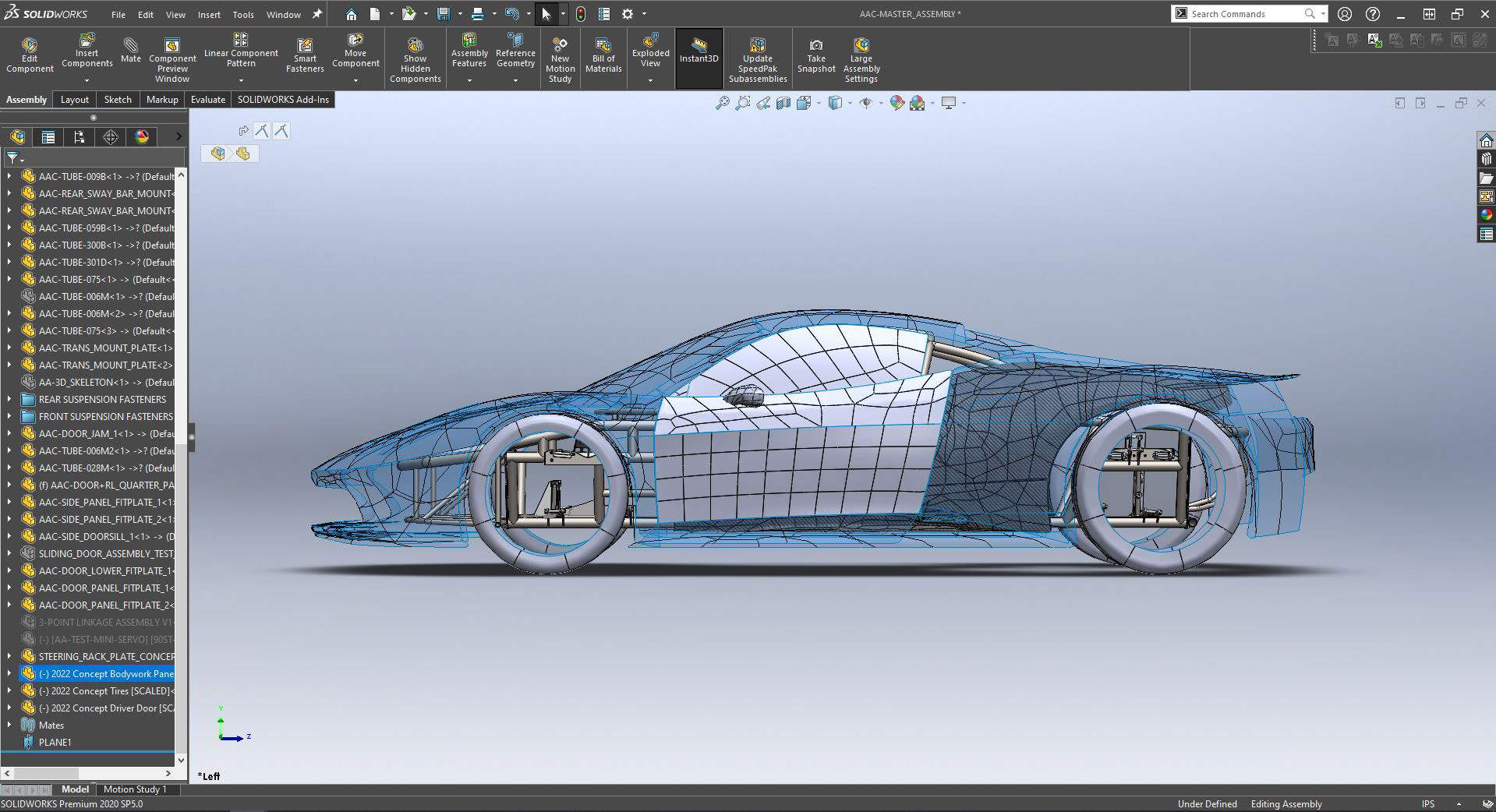

Bodywork design overlaid on the tube chassis in SolidWorks.
Bodywork design overlaid on the tube chassis in SolidWorks.
Bodywork design overlaid on the tube chassis in SolidWorks.
Bodywork design overlaid on the tube chassis in SolidWorks.

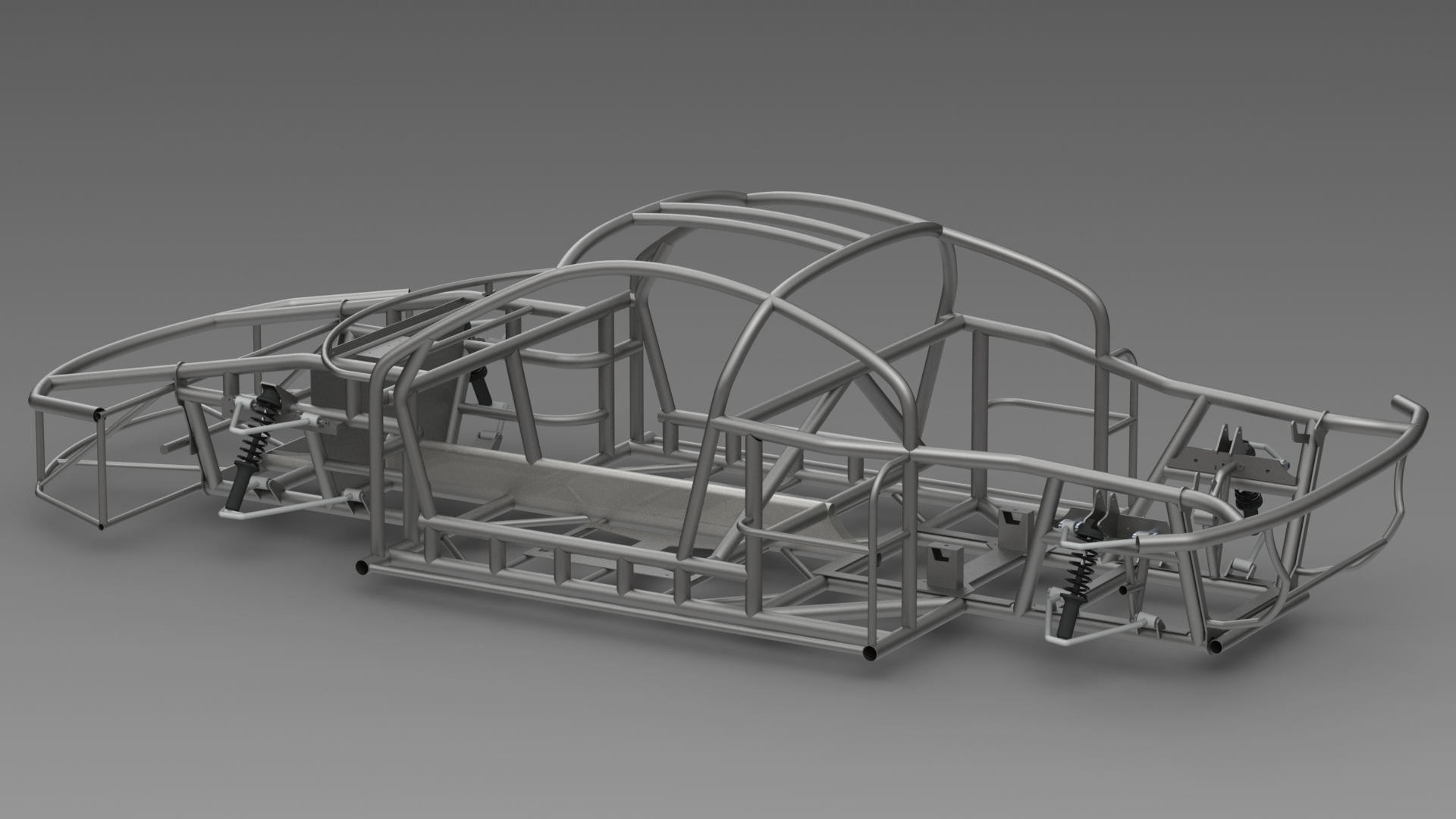

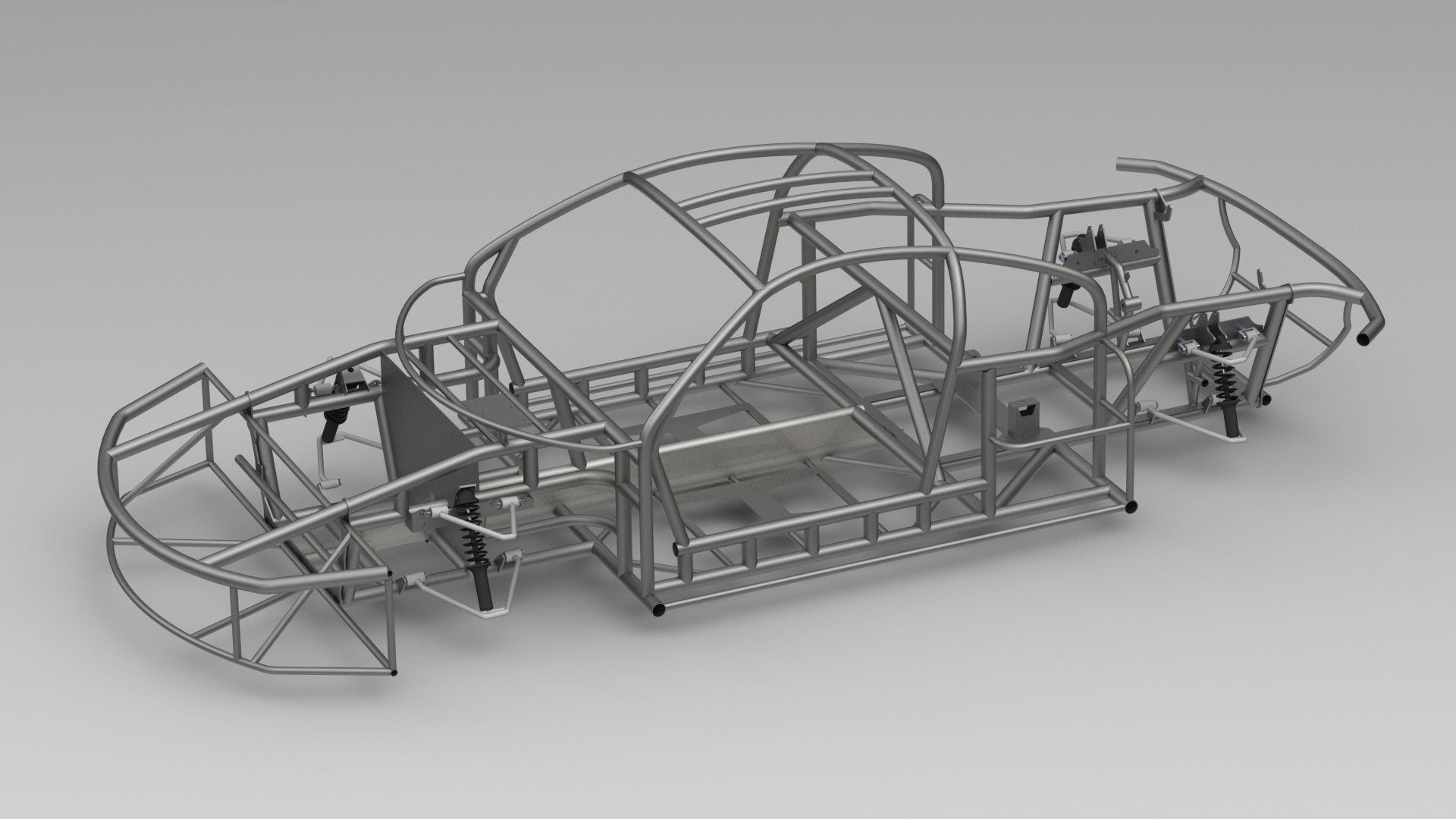

CAD render of the tube frame chassis in SolidWorks.
CAD render of the tube frame chassis in SolidWorks.
CAD render of the tube frame chassis in SolidWorks.
CAD render of the tube frame chassis in SolidWorks.

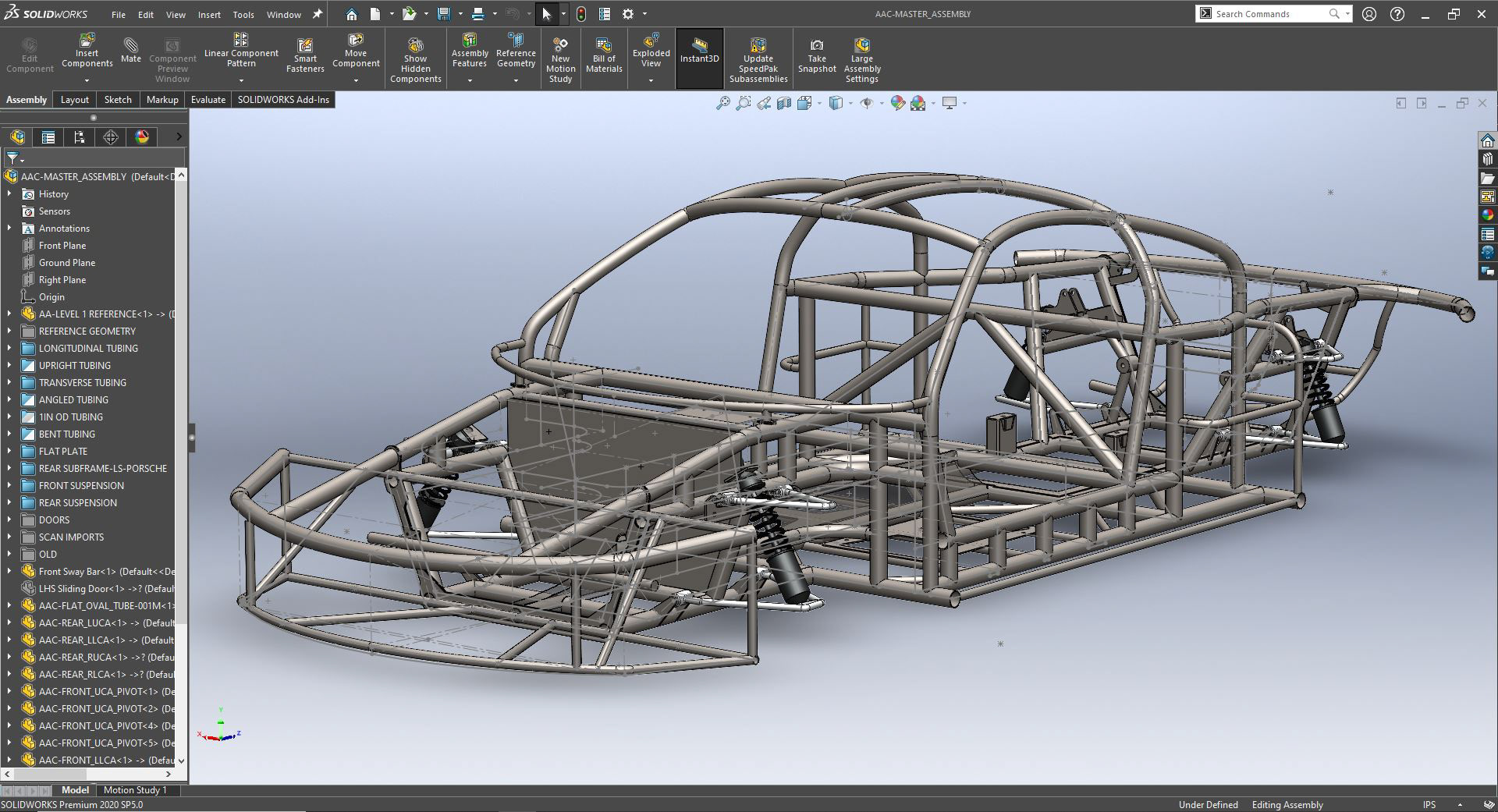

Tube frame assembly design in SolidWorks.
Tube frame assembly design in SolidWorks.

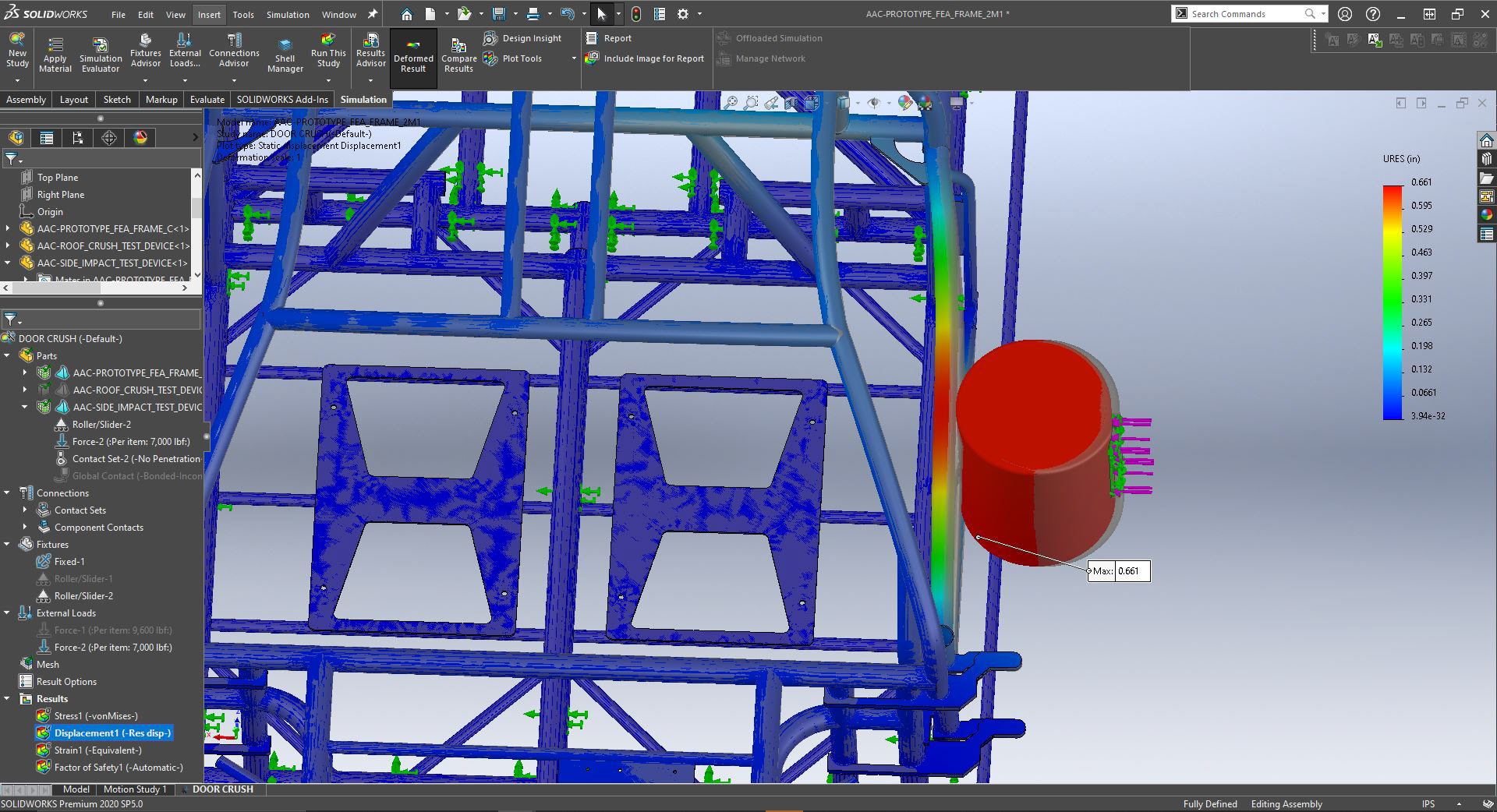

NHTSA side impact test in SolidWorks FEA.
NHTSA side impact test in SolidWorks FEA.

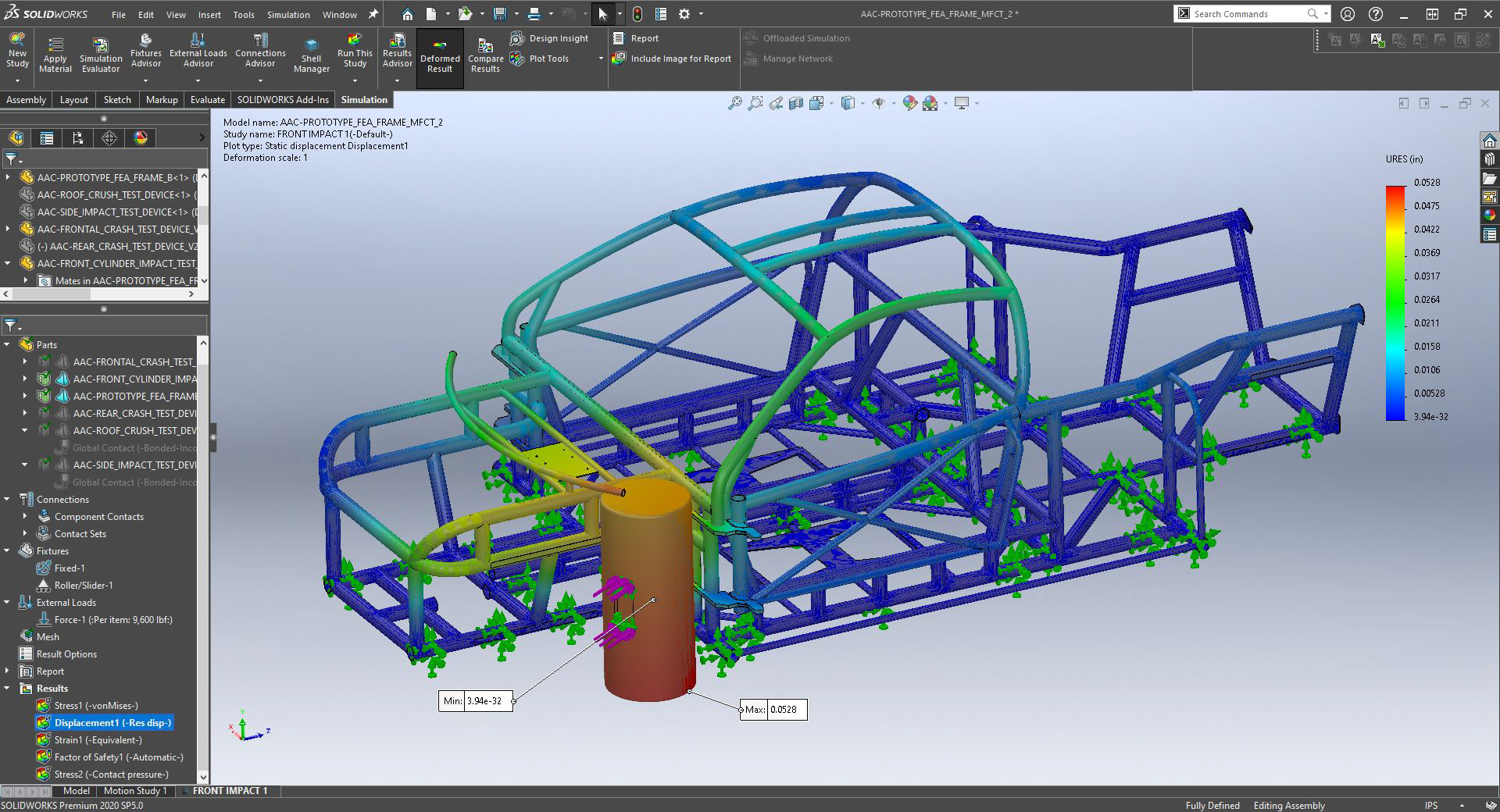

NHTSA front 3/4 impact test in SolidWorks FEA.
NHTSA front 3/4 impact test in SolidWorks FEA.

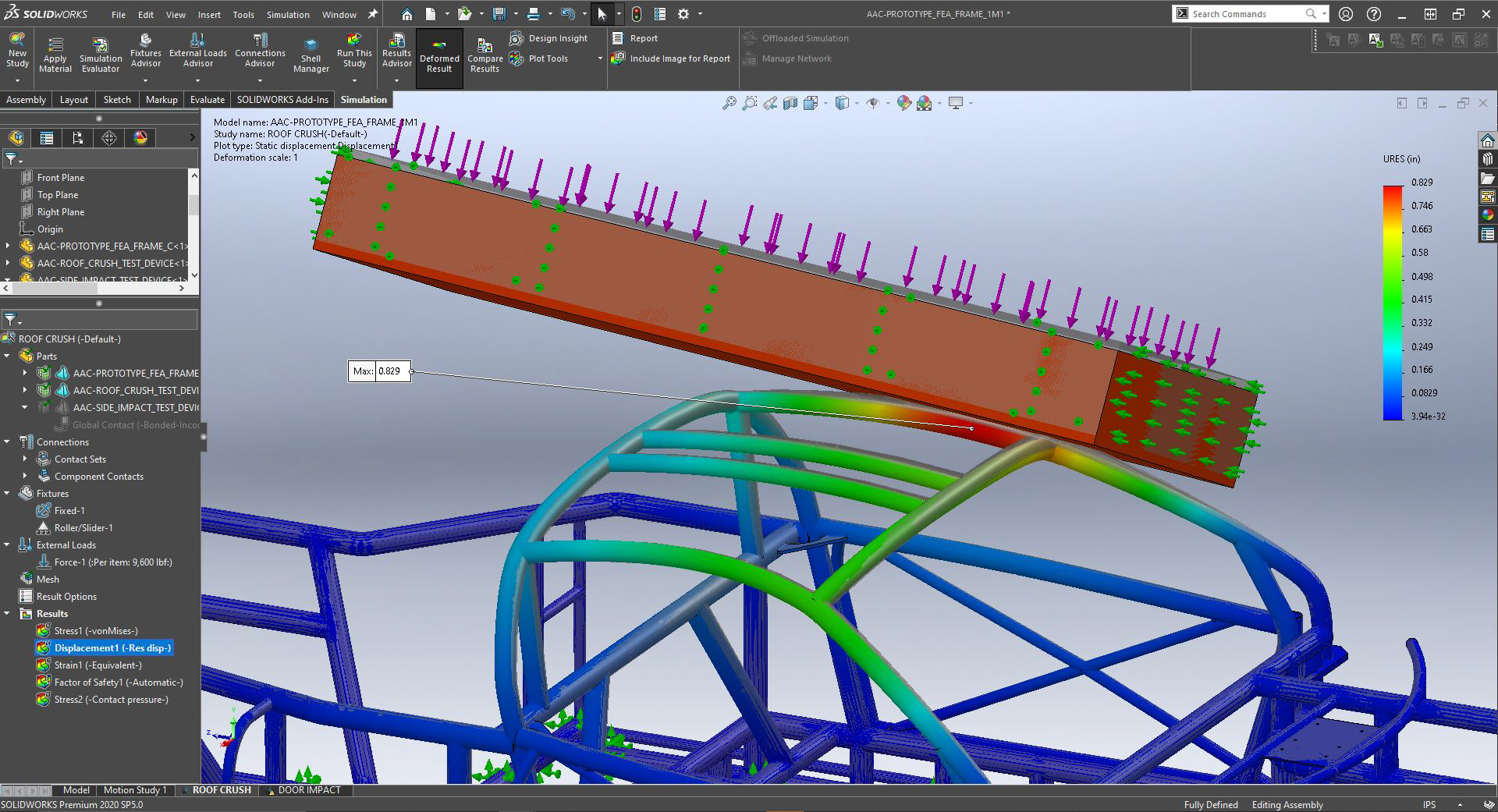

NHTSA roof crush rollover test in SolidWorks FEA.
NHTSA roof crush rollover test in SolidWorks FEA.
