What did we do?
Laser 3D scanning of the entire exterior & reverse-engineering the scanned surfaces before re-assembling the car digitally and designing/manufacturing a front splitter, front bumper canards, and a rear emblem.

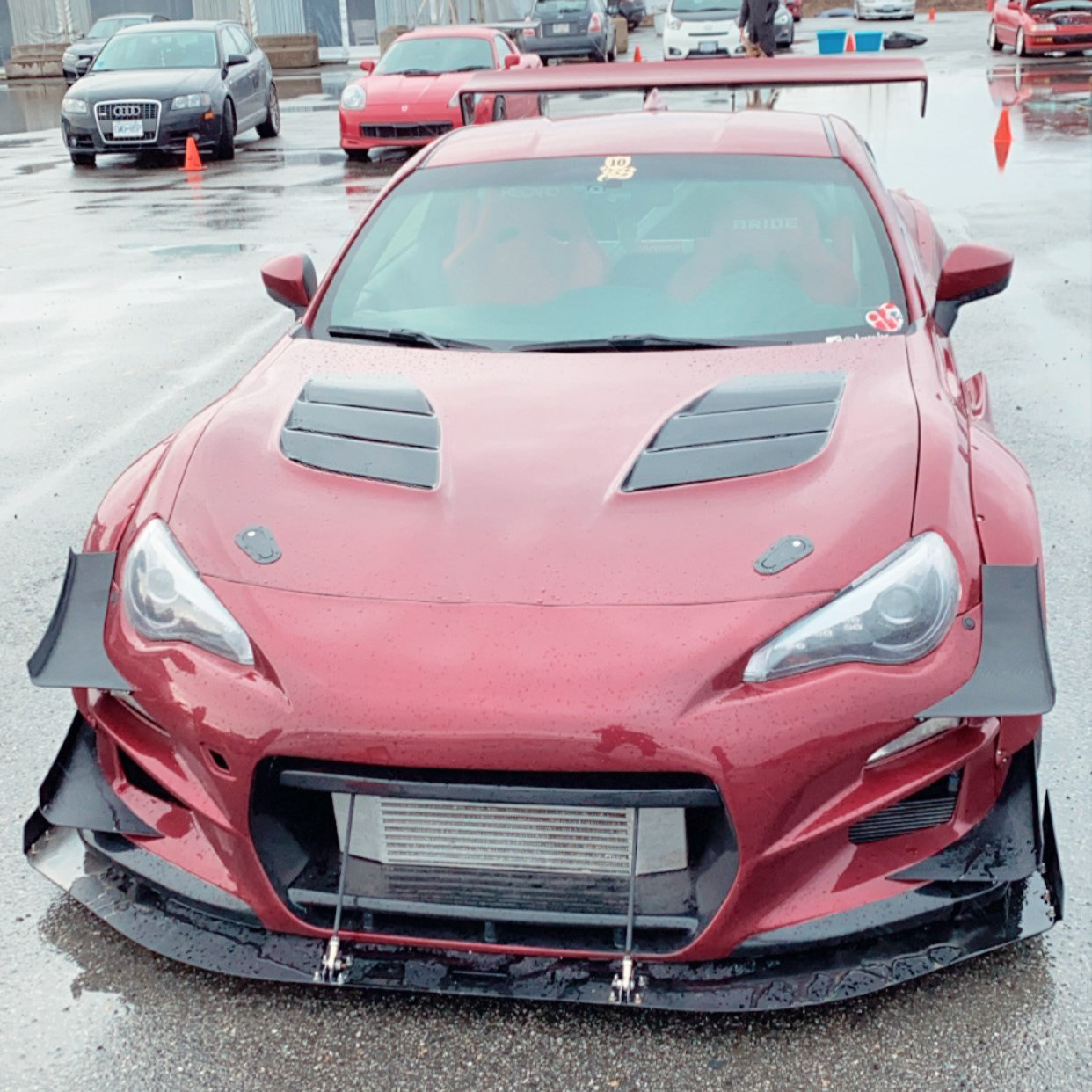

Front view of the installed front canards V2/splitter.

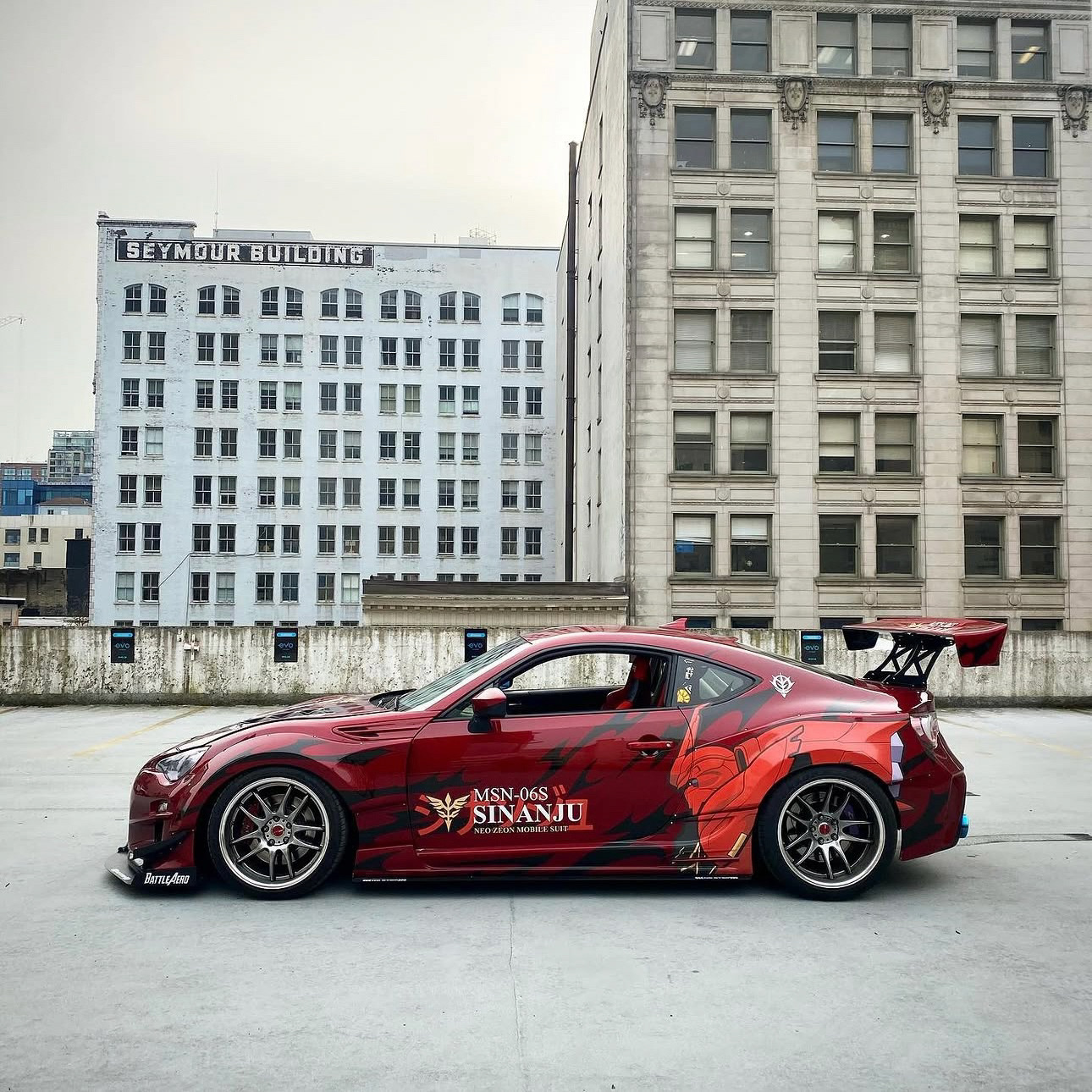

Side view of the installed front canards/splitter.

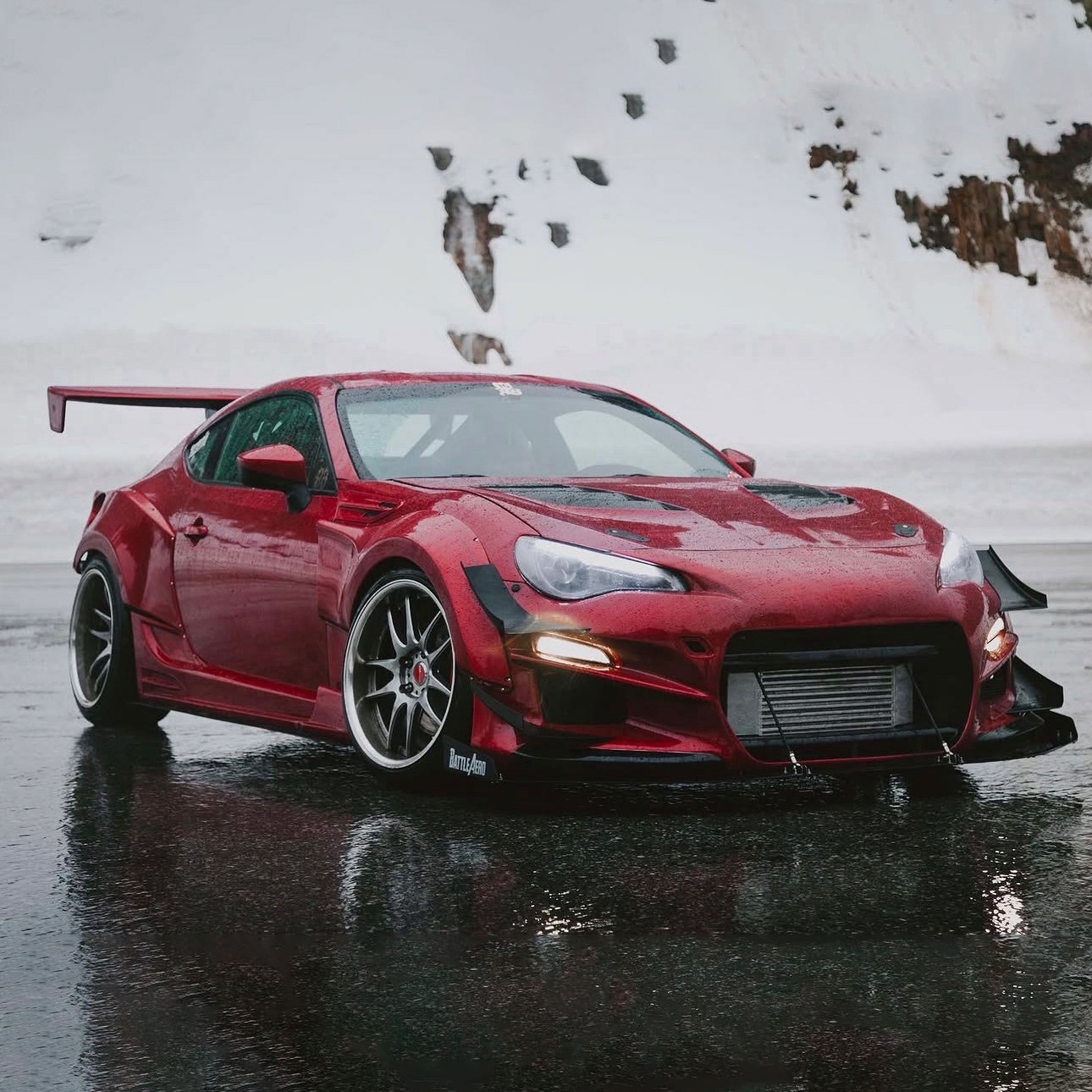

Front view of the installed front canards V1/splitter.

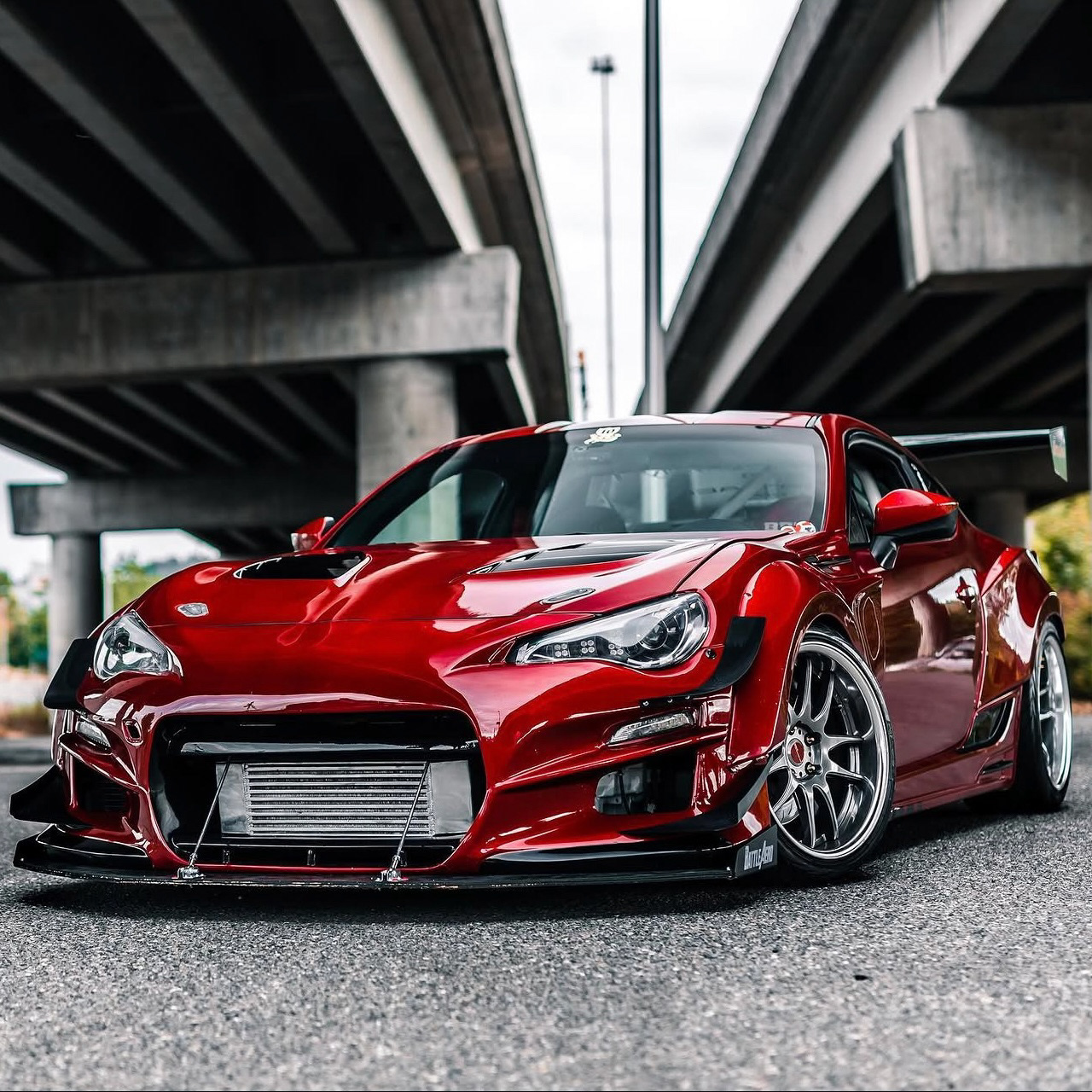

Front view of the installed front canards V2/splitter.

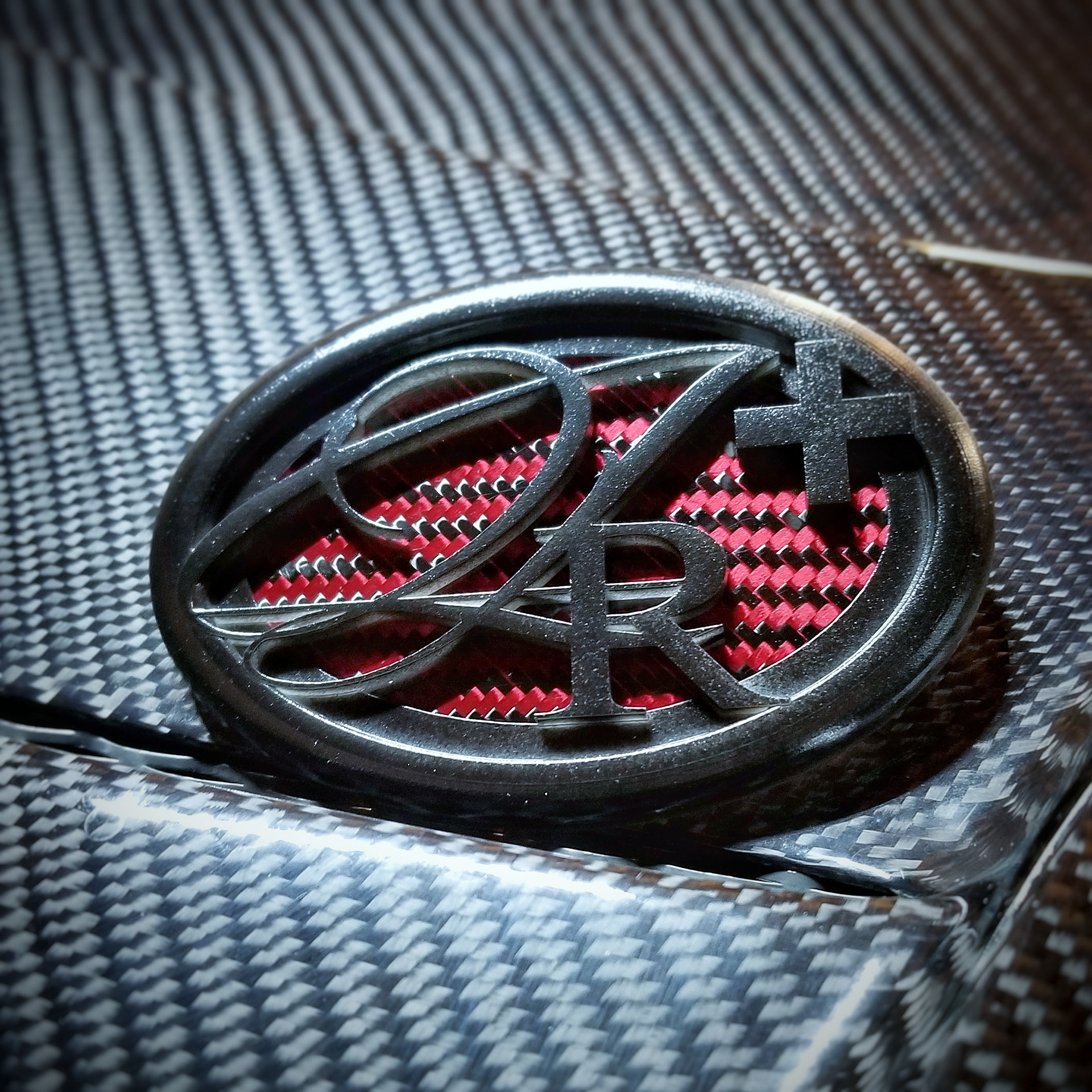

Custom-designed and manufactured Lost Royalty rear emblem with red carbon fiber backing.

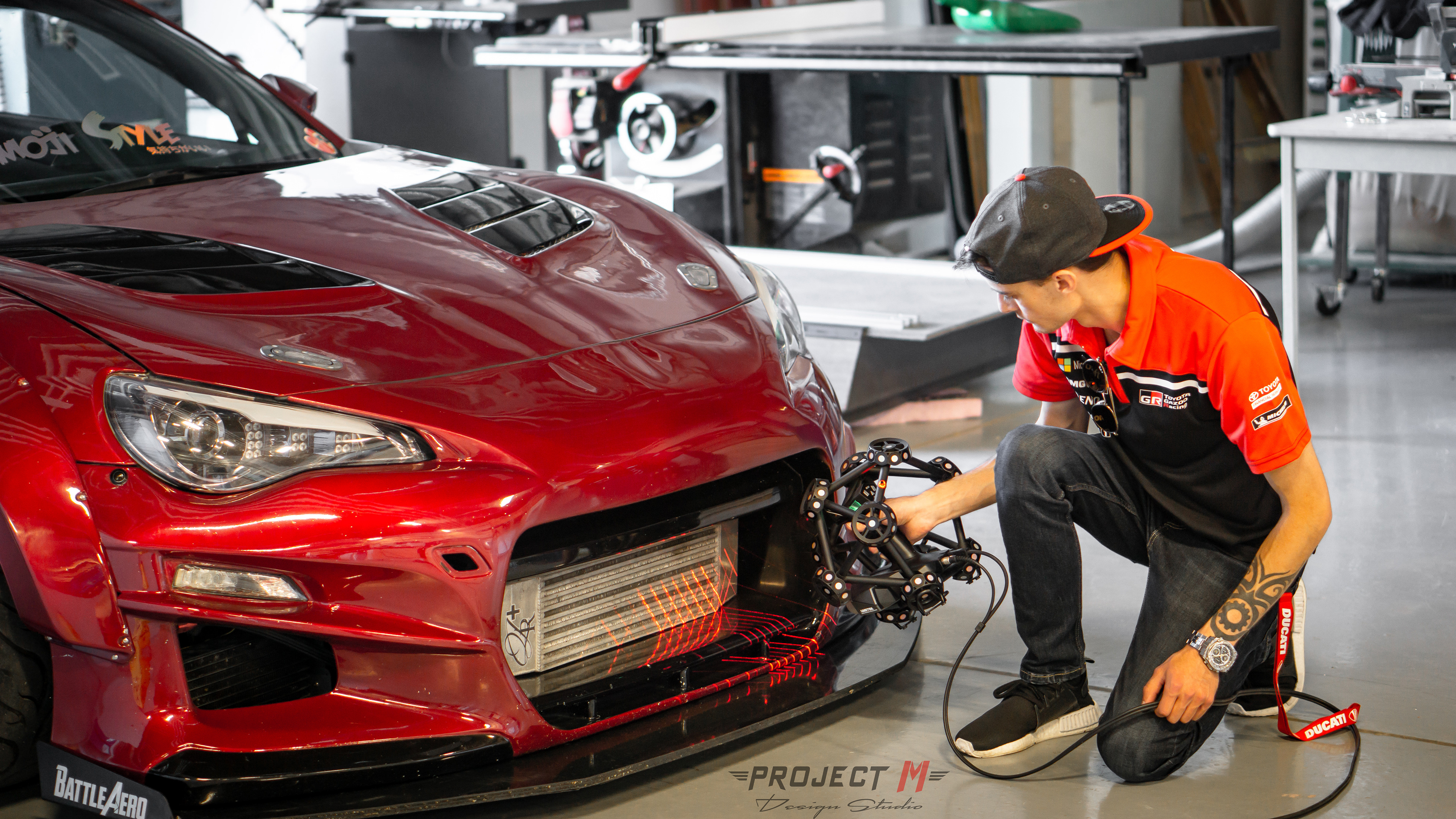

Laser scanning of the front end of the car with the Creaform Metrascan 750.

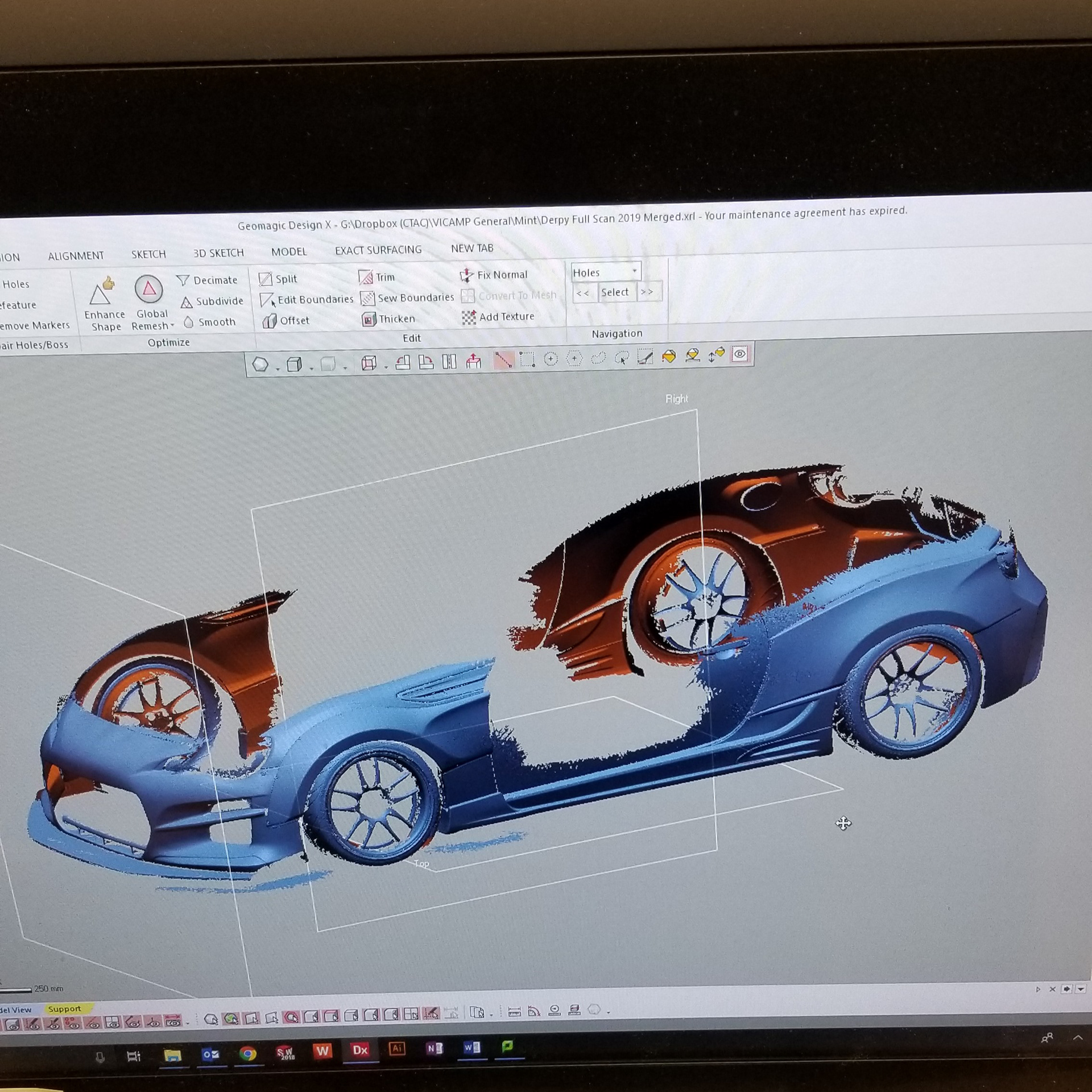

Raw laser scan data in Geomagic Design X after scanset alignment & merge.

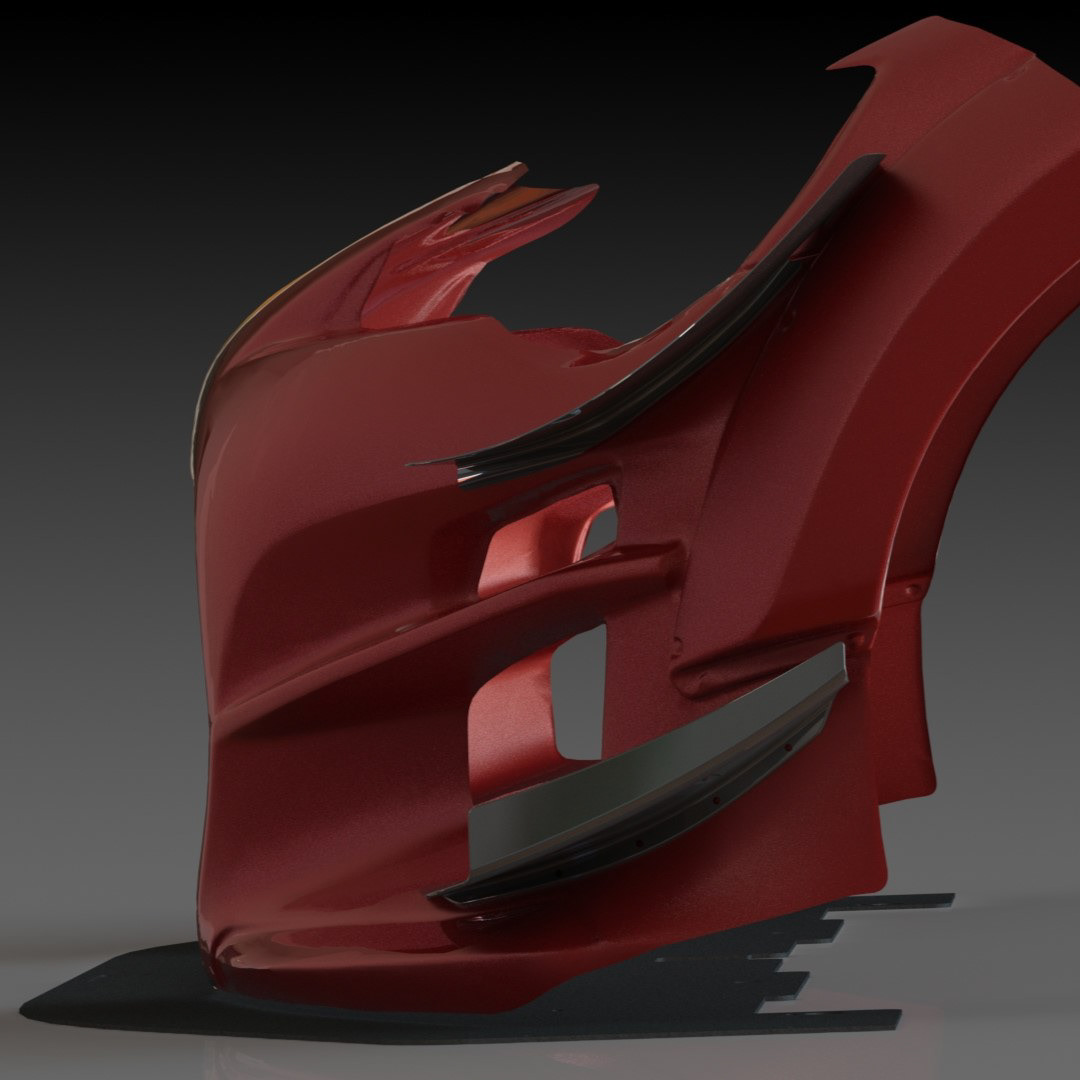

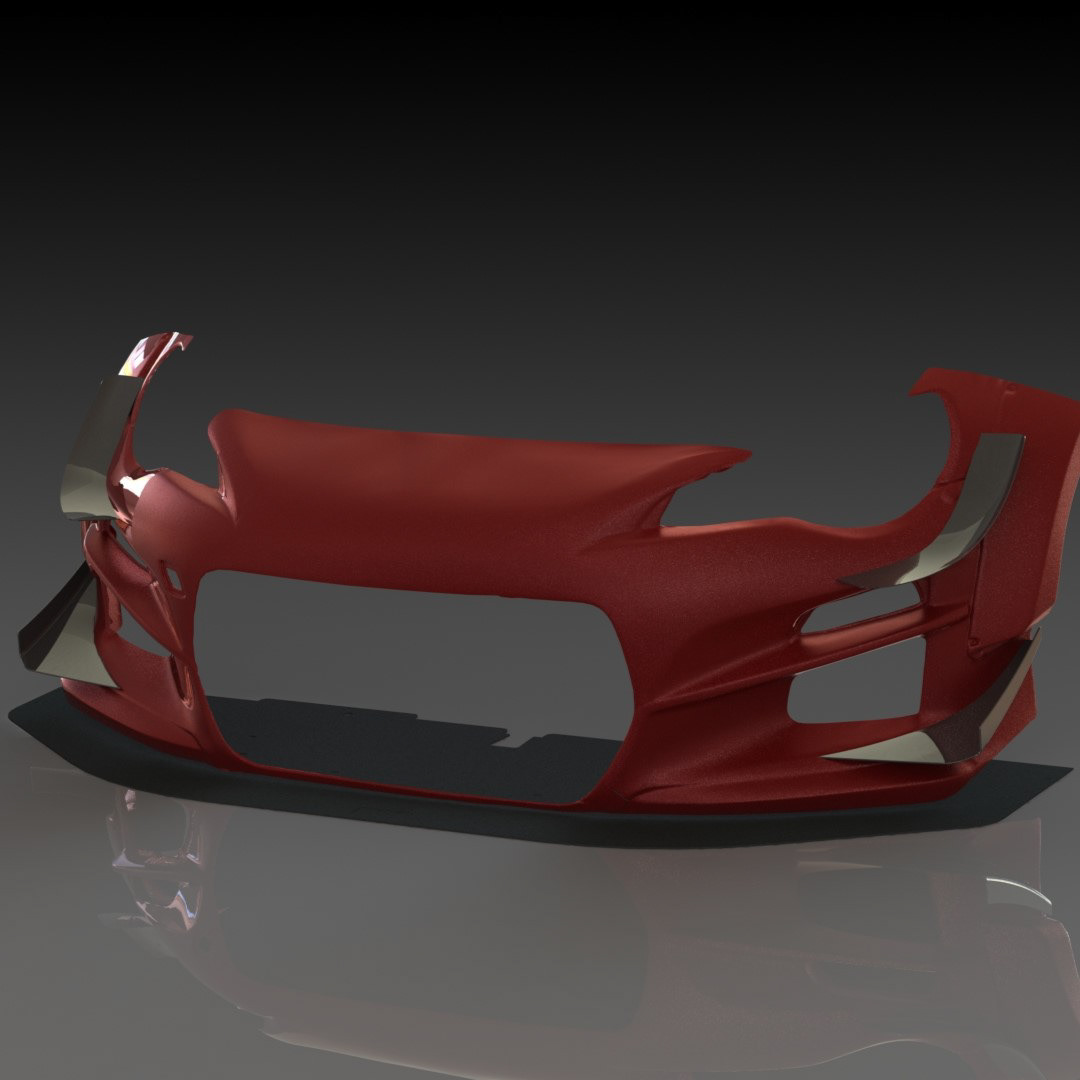

SolidWorks render of the front end canard/splitter design.
